You mean photo's like this?
![]()
Oil change time is fast approaching. I usually change my oil at the Auto Hobby shop at NAS JRB, where I can put it on a lift. While I have the car on a lift, are there any photos that I should take that would be helpful for others? I'm guessing the location of the transmission fill plug would be helpful - any other suggestions?
Mike Walsted - Not an expert, just a data point.
1999 Miata
2003 MIata
1999 Miata
2001 Kia Rio
You mean photo's like this?
![]()
aalvarez04, what kind of bracing is that? Or is that an NC?
aalvarez04 - Yea, like that, or any other photos that are easiet taken on a lift. Is there already a repository somewhere?
Mike Walsted - Not an expert, just a data point.
1999 Miata
2003 MIata
1999 Miata
2001 Kia Rio
You think the name of the picture gives it away?
Daily Driver: 2013 Club edition in Pearl White Mica
Lightness? What's that? I drive a PRHT!
Lots of interesting braces that I've never seen before.............
92 Sunny 214k, 95 Dimples, 93 James Bondo, 92 SM (Speedie Jr)
Shelley, Apex, Tigger, Max, Baby(cats), Fluffy, Spot, and Peanut (mini horses), Cinnamon & Bitsy(dawgs)
MSR #1001, SCCA #208822Let's go racin'

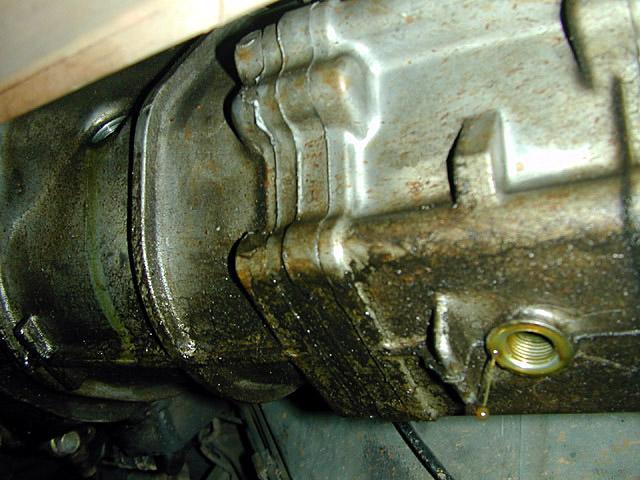

I took a few and posted them at http://www.mikewalsted.com/undercar.html . I figured they might help someone if they are trying to explain something that would be easier to explain with a picture.
Hope this helps someone.
Mike Walsted - Not an expert, just a data point.
1999 Miata
2003 MIata
1999 Miata
2001 Kia Rio
Nice pictures, that should help out for those crazy times you need pictures like that. ::saves pics to computer::
I'll probably take a few more next time. With my previous car, there were many times I wanted to ask "what is this?" and didn't have an angle for a decent picture when I needed it. I figure if I get enough pictures while I change oil, I won't run into that problem, and if I share, it may save others some time and hair-pulling.
